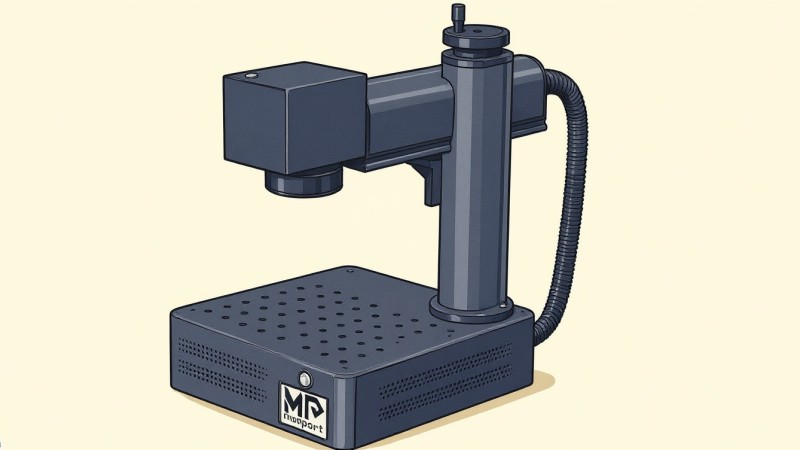

Unleashing Potential: A Deep Dive into the Monport 60W MOPA Fiber Laser

Welcome back, laser enthusiasts! Today, we're diving deep into an exciting new addition to the workshop: the Monport 60W MOPA Fiber Laser. This isn't just another machine; it's a game-changer, especially if you're looking to push the boundaries of what's possible with metal engraving, color marking, and intricate 3D depth maps. I've had the pleasure of testing this beast, and in this article, I'll walk you through its capabilities, setup, and share some hard-earned insights from my experience.

From unboxing to achieving stunning results on stainless steel, brass, and even slate, we'll cover everything you need to know. Whether you're a seasoned laser veteran or just curious about fiber laser technology, prepare to see how this powerful Monport MOPA system stands apart from traditional CO2 or diode lasers, offering unparalleled speed and precision for a vast array of materials and projects.

Table of Contents

Unboxing the Monport 60W MOPA Fiber Laser

The arrival of the Monport 60W MOPA fiber laser was certainly exciting. Unlike gantry-based CO2 lasers, this machine arrives as a compact, self-contained unit. Inside the box, you’ll find the laser itself, a user manual, a fiber laser test certificate, safety glasses (though I always recommend investing in certified, high-quality ones specific to your laser’s wavelength), a set of Allen keys, mounting bolts, and crucial metal framing grids.

Other essentials included a power supply, USB cable for computer connection, a USB dongle (likely with the software), a USB-C to USB converter, and even a couple of aluminum business cards for initial tests. A 40cm ruler is also provided, essential for setting the focal length – though some advanced machines offer autofocus, manual focus manipulation is key for achieving unique effects like color marking on stainless steel.

Practical tip: Always prioritize your safety. While included glasses are a start, invest in properly rated laser safety glasses for the specific wavelength of your fiber laser to ensure maximum protection.

Effortless Setup and Workflow Optimization

Setting up the Monport 60W MOPA fiber laser is surprisingly straightforward. The machine arrived with the laser head folded down; simply lift it into position and secure it with the provided thumb screws. It’s incredibly stable once assembled – no wiggling or instability to worry about. The lens, a 254mm standard, screws on easily, and there’s a protective cover to keep it pristine when not in use.

A standout feature for production work is the inclusion of metal framing grids. These grids are invaluable for repeatable jobs. Imagine needing to engrave 100 business cards; you bolt these frames into place on the laser bed, creating a precise jig. This ensures every card is positioned identically, making batch production a breeze. They're also great for holding multiple small items like pencils, allowing you to engrave many items in a single run, leveraging the fiber laser's incredible speed.

Practical tip: Utilize the framing grids and the grid of holes on the laser bed to create custom jigs for recurring projects. This dramatically increases efficiency and consistency for batch engraving jobs.

Unveiling MOPA Technology: Color and Precision

What truly sets the Monport 60W MOPA fiber laser apart is its MOPA (Master Oscillator Power Amplifier) technology. Unlike traditional Q-switched fiber lasers with fixed pulse durations, MOPA systems offer adjustable pulse widths. This means you gain incredible control over the laser's interaction with materials.

This adjustable pulse duration is the secret sauce for vibrant color markings on stainless steel, allowing for a spectrum of hues depending on your settings. It also enables high-contrast engravings on various plastics and other materials that might be challenging for conventional lasers. With a powerful 60W output, this Monport machine delivers deep, detailed, and incredibly fast engravings, making it a powerhouse for industrial applications and high-volume production where precision and speed are paramount.

Practical tip: To achieve different color markings on stainless steel with your MOPA fiber laser, experiment with varying pulse durations, frequencies, power settings, and even slight defocusing. This fine-tuning unlocks a wide palette of colors.

Mastering the Learning Curve for Fiber Lasers

Transitioning from CO2 or diode lasers to a fiber laser, especially a MOPA system, involves a steep learning curve. The software, often LightBurn, offers a myriad of settings, and tweaking them even slightly can have a massive impact on your project's outcome. It's not uncommon for initial attempts to fall short of expectations, like my early tests which resulted in surprisingly simple, almost blank engravings.

However, persistence pays off. Through diligent testing and adjustment of power, speed, frequency, and pulse duration, you start to unlock the machine's true potential. It's a process of trial and error, but each test brings you closer to understanding how these variables interact to produce stunning detail, contrast, and depth. The satisfaction of finally dialing in the perfect settings for an intricate design is incredibly rewarding.

Practical tip: Document your settings for every successful (and unsuccessful) engraving project. Create a material test matrix to quickly find optimal power, speed, frequency, and pulse duration settings for different materials and desired effects.

Stunning Metal Engravings: From Detail to Depth

The Monport 60W MOPA fiber laser truly shines when working with metals. I’ve tested it extensively on aluminum business cards, and the results are consistently impressive. Designs ranging from a detailed fairy tale castle with intricate highlights and shadows to complex figures with fine hair, clothing, and facial features, all come out incredibly clean and sharp.

Even highly detailed images, like a cat with visible whiskers and fur, or a dog wearing sunglasses with galaxies reflected in the lenses, showcased the machine's ability to render minute details with precision. Intricate scenes packed with tiny figures on business card-sized canvases also translated flawlessly. This level of detail and clarity on metal is a testament to the fiber laser's focused power and fine control, making it perfect for personalized gifts, branding, or industrial part marking.

Practical tip: For achieving ultra-fine details on metal, ensure your focus is perfectly calibrated. Slight adjustments to line density and laser power can help bring out subtle textures and contrasts in your designs.

Beyond Metal: Versatility with Slate and More

While fiber lasers are renowned for metalwork, the Monport 60W MOPA system demonstrates surprising versatility on other materials like slate. My experiments with slate involved both image engraving and 3D depth maps. For image engraving, the choice of paint applied to the slate significantly affects the final look.

I found that a matte black paint consistently yielded superior results compared to gloss black, offering richer contrast and sharper details. Engraved images, even complex 3D illusion designs, translated beautifully onto the slate, showcasing crisp lines and excellent depth perception. This adaptability means you're not just limited to metal; the MOPA fiber laser can open doors to a wider range of custom projects and artistic expressions on various substrates.

Practical tip: When engraving slate, pre-paint the surface with matte black paint for the best contrast and detail. Experiment with different paint brands and application methods to find what works best with your laser settings.

Unlocking 3D Engraving with Depth Maps

One of the most captivating capabilities of this Monport 60W MOPA fiber laser is its ability to create genuine 3D depth map engravings. By processing grayscale depth maps, the laser precisely removes material in varying amounts, creating tactile, multi-dimensional surfaces. I've produced stunning results on slate, such as a dragon design where every scale and wing detail is clearly carved, creating a beautiful relief effect.

However, true 3D engraving is where fiber lasers truly shine on metals. My brass coins, for instance, transformed into miniature sculptures with deeply carved details, bringing custom designs to life with impressive realism and depth. It's an advanced technique that requires custom-made depth maps, but the results are absolutely breathtaking and offer a premium finish unmatched by simpler engraving methods.

Practical tip: When creating 3D depth maps, ensure your grayscale image has smooth transitions between shades to avoid harsh lines in the final engraving. Practice on scrap material to dial in the perfect power and speed settings for desired depth and detail.

Frequently Asked Questions

What materials can the Monport 60W MOPA fiber laser engrave?
The Monport 60W MOPA fiber laser excels at engraving various metals like stainless steel, brass, aluminum, gold, silver, and titanium. It can also mark some plastics and engrave materials like slate, offering great versatility.

Can the Monport 60W MOPA fiber laser create colors on metal?
Yes, one of the key advantages of a MOPA fiber laser is its ability to create vibrant color markings on stainless steel by adjusting pulse duration, frequency, and power settings.

Is a Monport 60W MOPA fiber laser difficult to set up?
Physically, the Monport 60W MOPA fiber laser is designed for easy setup, often just requiring unfolding and securing the head. The learning curve is primarily with mastering the software settings for optimal engraving results.

What is the main benefit of a MOPA fiber laser over a standard fiber laser?
The main benefit of a MOPA fiber laser, like the Monport 60W MOPA, is its adjustable pulse duration, which allows for more control over material interaction, enabling color marking and finer detail on a wider range of materials.

Conclusion

My journey with the Monport 60W MOPA Fiber Laser has been an incredible experience. While the learning curve was initially steep, transitioning from CO2 and diode lasers, the power, speed, and precision this machine offers are truly unparalleled. It opens up a whole new world of creative and industrial possibilities, from intricate metal engravings and vibrant color markings on stainless steel to stunning 3D depth maps on brass coins and detailed work on slate.

The Monport MOPA system is a robust, efficient, and highly capable machine that delivers exceptional results once mastered. For anyone serious about high-quality, high-speed engraving on metals and beyond, this 60W MOPA fiber laser is an investment that truly pays off, pushing the boundaries of what you can achieve in your workshop. Keep experimenting, keep creating, and you'll unlock the full potential of this incredible technology.
